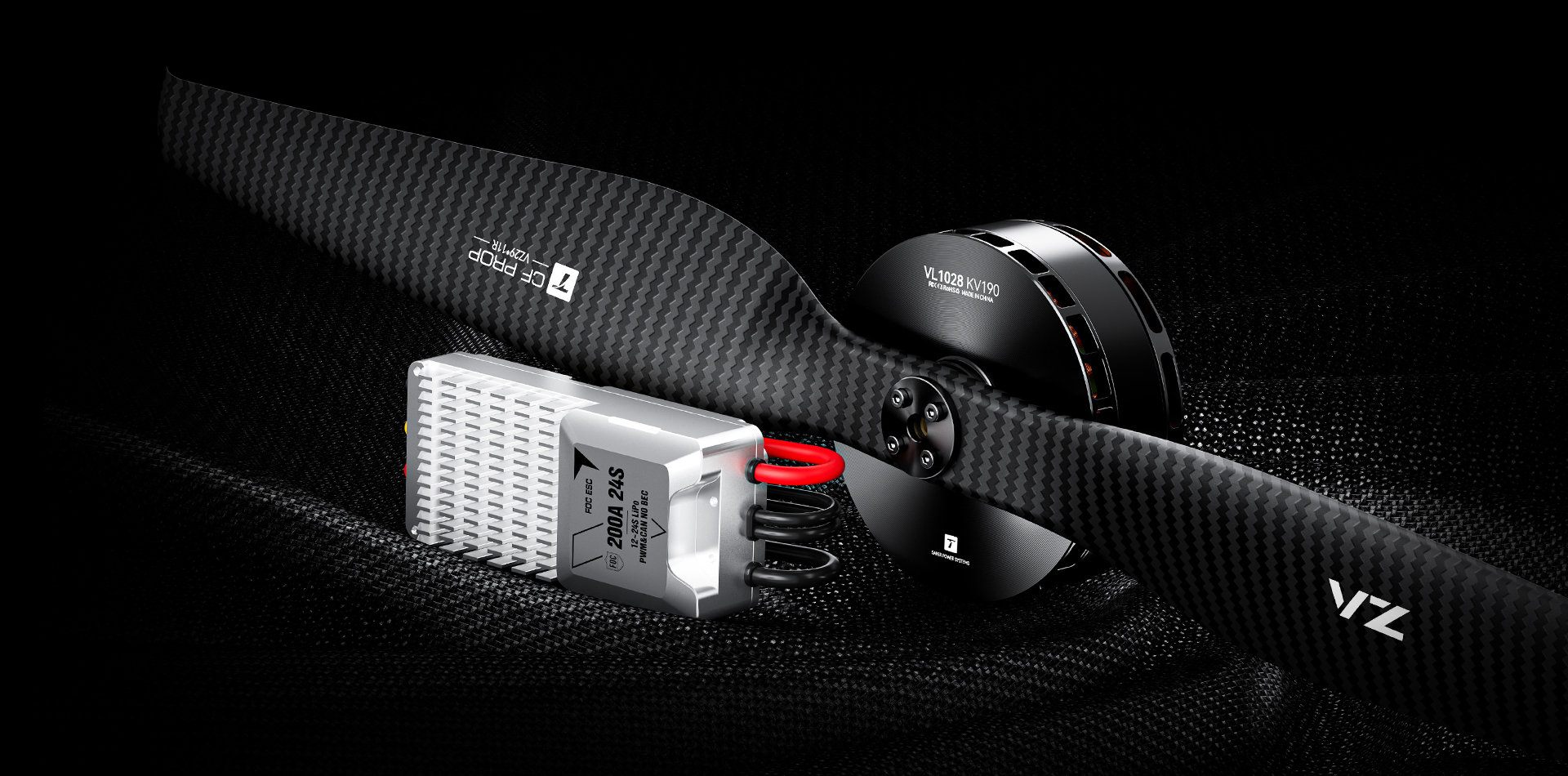

VL1028 KV190
MOTOR
V200A
ESC
G29
PROPELLER
Recommendation
12S
Voltage
25.6kg
Max.Thrust/Arm
45~50kg
Recommended MTOW(Quad)
Technical Drawing
Specification
| Model No. | VL1028 | Magnet Level | 180℃ |
| Motor Size | Φ109.6*52.5mm | Lead Cable | Enameled wire 150mm |
| Stator | 150°C high temperature -resisting coatings | Copper Wire | 220℃ |
| Configuration | 24N28P | Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic Balance Standard | ≤15mg |
| Bearing | Imported 6901 | IP | IPX5 |
| Centrifugal Cooling Design | YES | Package Size | 190*140*80mm |
| Model No. | VL1028 | KV (RPM/V) | 190 |
| Rated Voltage (LiPo) | 12S | Idle Current (15V) | 3.8A |
| Internal Resistance(25℃) | 8mΩ | Peak Current | 180A |
| Continuous Power(180s) | 3200W | Ambient Temperature | -30℃～55℃ |
| Max. Thrust | 25.6kg | Motor Weight (indl. Cable) | 940g |
| ESC specs. | |||
| Model No. | V200A | Control | PWM/CAN |
| Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN |
| Peak Current (10s) | 220A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking |
| Continuous Current | 120A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black-24AWG-5C-450±10mm-M6 aviation connector |
| Standby Consumption | ≤50mA | Output Cable | Silicone wire-orange-14AWG-250±10mm |
| Throttle Pos. Range | 1100-1940us (fixed) | Input Cable | Silicone wire-red/black-12AWG-1200±10mm |
| Throttle Refresh Frequency | 50~500Hz | Signal Cable | Shielded cables-Black-OD4.2-5C-800±10mm-JP-3P*2-Black blank white-green yellow gray |
| Throttle Response Speed | 300ms | Weight (Incl. cables) | 495±10g |
| Prop specs. | |||
| Model No. | G29*9.5 inch (736.6*241.3mm) | Weight (Single Blade) | 95±5g |
Test Data
| Type | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) | |
| VL1028 KV190 + V200A 14S + G29*9.5 | 40% | 44.71 | 5565 | 1.82 | 14.61 | 2743 | 653 | 8.52 | 68 (Ambient Temperature: 25) | |
| 42% | 44.67 | 6080 | 1.98 | 16.62 | 2879 | 742 | 8.19 | |||
| 44% | 44.64 | 6664 | 2.18 | 18.92 | 3011 | 844 | 7.89 | |||
| 46% | 44.61 | 7279 | 2.37 | 21.37 | 3143 | 953 | 7.64 | |||
| 48% | 44.59 | 7893 | 2.56 | 24.00 | 3273 | 1070 | 7.37 | |||
| 50% | 44.57 | 8603 | 2.79 | 27.01 | 3398 | 1204 | 7.15 | |||
| 52% | 44.54 | 9236 | 3.01 | 30.10 | 3526 | 1341 | 6.89 | |||
| 54% | 44.51 | 9881 | 3.22 | 33.33 | 3649 | 1484 | 6.66 | |||
| 56% | 44.47 | 10574 | 3.45 | 36.82 | 3768 | 1637 | 6.46 | |||
| 58% | 44.42 | 11284 | 3.68 | 40.61 | 3885 | 1804 | 6.25 | |||
| 60% | 44.36 | 12071 | 3.93 | 44.66 | 3999 | 1981 | 6.09 | |||
| 62% | 44.30 | 12814 | 4.18 | 48.95 | 4107 | 2168 | 5.91 | |||
| 64% | 44.25 | 13501 | 4.40 | 53.14 | 4217 | 2351 | 5.75 | |||
| 66% | 44.18 | 14222 | 4.64 | 57.76 | 4324 | 2552 | 5.57 | |||
| 68% | 44.11 | 14949 | 4.89 | 62.59 | 4430 | 2761 | 5.41 | |||
| 70% | 44.04 | 15640 | 5.14 | 67.69 | 4532 | 2981 | 5.25 | |||
| 80% | 43.74 | 19280 | 6.35 | 96.45 | 5021 | 4219 | 4.57 | |||
| 90% | 43.88 | 22918 | 7.58 | 135.09 | 5466 | 5928 | 3.86 | |||
| 100% | 43.31 | 24564 | 8.13 | 177.33 | 5638 | 7679 | 3.20 | |||
| VL1028 KV190 + V200A 14S + G29*9.5 | 40% | 50.25 | 7075 | 2.31 | 18.25 | 3089 | 917 | 7.72 | 68 (Ambient Temperature: 25) | |
| 42% | 50.21 | 7766 | 2.54 | 20.91 | 3238 | 1050 | 7.39 | |||
| 44% | 50.16 | 8472 | 2.77 | 23.76 | 3384 | 1192 | 7.11 | |||
| 46% | 50.11 | 9199 | 3.01 | 26.89 | 3532 | 1348 | 6.82 | |||
| 48% | 50.07 | 10007 | 3.27 | 30.21 | 3672 | 1512 | 6.62 | |||
| 50% | 50.02 | 10786 | 3.53 | 33.84 | 3808 | 1693 | 6.37 | |||
| 52% | 49.97 | 11579 | 3.79 | 37.76 | 3944 | 1887 | 6.13 | |||
| 54% | 49.92 | 12431 | 4.07 | 41.97 | 4075 | 2095 | 5.93 | |||
| 56% | 49.85 | 13296 | 4.35 | 46.38 | 4203 | 2312 | 5.75 | |||
| 58% | 49.78 | 14139 | 4.63 | 51.02 | 4330 | 2540 | 5.56 | |||
| 60% | 49.72 | 14996 | 4.91 | 55.88 | 4452 | 2778 | 5.40 | |||
| 62% | 49.65 | 15826 | 5.20 | 60.98 | 4577 | 3028 | 5.23 | |||
| 64% | 49.59 | 16622 | 5.47 | 66.30 | 4693 | 3288 | 5.05 | |||
| 66% | 49.53 | 17552 | 5.77 | 72.19 | 4802 | 3575 | 4.91 | |||
| 68% | 49.46 | 18445 | 6.07 | 78.32 | 4910 | 3874 | 4.76 | |||
| 70% | 49.40 | 19313 | 6.36 | 84.64 | 5016 | 4181 | 4.62 | |||
| 80% | 49.07 | 23351 | 7.74 | 120.83 | 5495 | 5929 | 3.94 | |||
| 90% | 49.21 | 24306 | 8.11 | 152.31 | 5600 | 7495 | 3.24 | |||
| 100% | 49.23 | 25609 | 8.54 | 158.17 | 5735 | 7787 | 3.28 | |||
| Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.） | ||||||||||

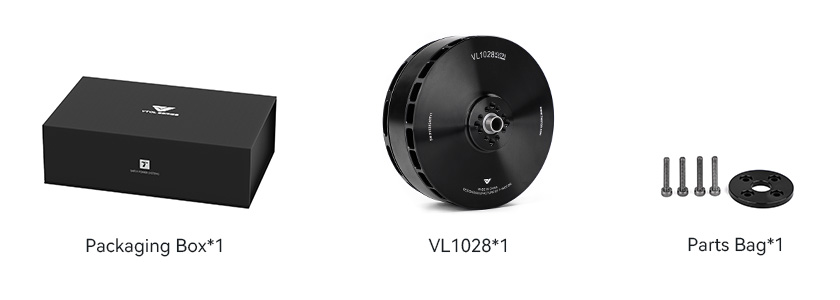

Packing List
