VL6013 KV210
MOTOR
V80A
ESC
P22
PROPELLER
Recommendation
12S
Voltage
13.1kg
Max.Thrust/Arm
20~22kg
Recommended MTOW(Quad)
Technical Drawing
Specification
| Model No. | VL6013 | Magnet Level | 180℃ |
| Motor Size | Φ68.8*39.4mm | Lead Cable | Silicone wire14# 600mm |
| Stator | 150°C high temperature -resisting coatings | Copper Wire | 220℃ |
| Configuration | 24N28P | Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 6 OUT: 6 | Rotor Dynamic BalanceStandard | ≤10mg |
| Bearing | Imported 626 | IP | IPX5 |
| CentrifugalCooling Design | YES | Package Size | 135*104*50mm |
| Model No. | VL6013 | KV (RPM/V) | 210 |
| Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.5A |
| Internal Resistance(25℃) | 50mΩ | Peak Current | 70A |
| Continuous Power(180s) | 1300W | Ambient Temperature | -30℃～55℃ |
| Max. Thrust | 13.1kg | Motor Weight(indl. Cable) | 388g |
| ESC specs. | |||
| Model No. | V80A | Control | PWM/CAN |
| Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN |
| Peak Current (10s) | 80A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking |
| Continuous Current | 40A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector |
| Standby Consumption | ≤50mA | Output Cable | Silicone wire-orange -14AWG-110±10mm |
| Throttle Pos. Range | 1040~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm |
| Throttle RefreshFrequency | 50~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P*2-Black blank white-green yellow gray |
| Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 110g |
| Prop specs. | |||
| Model No. | P22*6.6 inch (558.8*167.6mm) | Weight (Single Blade) | 45±2g |
Test Data
| Type | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) | |
| VL6013 KV210 + V80A 14S + P22*6.6 | 40% | 45.02 | 2384 | 0.60 | 5.76 | 3343 | 259 | 9.19 | 72 (Ambient Temperature: 25) | |
| 42% | 45.06 | 2649 | 0.67 | 6.66 | 3512 | 300 | 8.83 | |||
| 44% | 45.08 | 2950 | 0.74 | 7.65 | 3676 | 345 | 8.56 | |||
| 46% | 45.10 | 3228 | 0.80 | 8.67 | 3841 | 391 | 8.26 | |||
| 48% | 45.12 | 3562 | 0.88 | 9.87 | 4001 | 445 | 8.00 | |||
| 50% | 45.13 | 3841 | 0.95 | 11.06 | 4165 | 499 | 7.70 | |||
| 52% | 45.15 | 4203 | 1.03 | 12.45 | 4332 | 562 | 7.47 | |||
| 54% | 45.15 | 4551 | 1.12 | 13.92 | 4493 | 628 | 7.24 | |||
| 56% | 45.15 | 4907 | 1.21 | 15.49 | 4648 | 699 | 7.02 | |||
| 58% | 45.15 | 5250 | 1.29 | 17.14 | 4805 | 774 | 6.78 | |||
| 60% | 45.15 | 5624 | 1.39 | 18.97 | 4961 | 857 | 6.57 | |||
| 62% | 45.13 | 6022 | 1.48 | 20.96 | 5126 | 946 | 6.37 | |||
| 64% | 45.12 | 6411 | 1.58 | 22.99 | 5274 | 1037 | 6.18 | |||
| 66% | 45.12 | 6827 | 1.68 | 25.23 | 5423 | 1138 | 6.00 | |||
| 68% | 45.11 | 7241 | 1.78 | 27.58 | 5574 | 1244 | 5.82 | |||
| 70% | 45.09 | 7670 | 1.89 | 30.18 | 5730 | 1361 | 5.63 | |||
| 80% | 44.97 | 9973 | 2.47 | 45.95 | 6468 | 2066 | 4.83 | |||
| 90% | 44.62 | 12189 | 3.04 | 77.83 | 7113 | 3473 | 3.51 | |||
| 100% | 44.56 | 12517 | 3.13 | 77.35 | 7195 | 3447 | 3.63 | |||
| VL6013 KV210 + V80A 14S + P22*6.6 | 40% | 50.82 | 3099 | 0.76 | 7.28 | 3748 | 370 | 8.38 | 72 (Ambient Temperature: 25) | |
| 42% | 50.86 | 3431 | 0.84 | 8.39 | 3933 | 427 | 8.04 | |||
| 44% | 50.89 | 3810 | 0.93 | 9.68 | 4119 | 493 | 7.74 | |||
| 46% | 50.91 | 4174 | 1.02 | 10.98 | 4300 | 559 | 7.46 | |||
| 48% | 50.93 | 4547 | 1.11 | 12.42 | 4485 | 633 | 7.19 | |||
| 50% | 50.96 | 4939 | 1.20 | 14.00 | 4663 | 713 | 6.93 | |||
| 52% | 50.97 | 5363 | 1.31 | 15.79 | 4846 | 805 | 6.66 | |||
| 54% | 50.99 | 5805 | 1.42 | 17.65 | 5016 | 900 | 6.45 | |||
| 56% | 51.00 | 6233 | 1.52 | 19.61 | 5189 | 1000 | 6.23 | |||
| 58% | 51.00 | 6680 | 1.64 | 21.76 | 5360 | 1110 | 6.02 | |||
| 60% | 51.01 | 7163 | 1.75 | 24.08 | 5537 | 1228 | 5.83 | |||
| 62% | 51.01 | 7661 | 1.88 | 26.66 | 5711 | 1360 | 5.63 | |||
| 64% | 51.01 | 8139 | 1.99 | 29.28 | 5873 | 1493 | 5.45 | |||
| 66% | 50.99 | 8622 | 2.12 | 32.10 | 6041 | 1637 | 5.27 | |||
| 68% | 50.98 | 9179 | 2.25 | 35.38 | 6208 | 1803 | 5.10 | |||
| 70% | 50.97 | 9690 | 2.38 | 38.66 | 6371 | 1970 | 4.92 | |||
| 80% | 50.70 | 12526 | 3.12 | 61.65 | 7175 | 3125 | 4.01 | |||
| 90% | 50.71 | 12759 | 3.18 | 69.88 | 7224 | 3543 | 3.60 | |||
| 100% | 50.63 | 13084 | 3.27 | 69.90 | 7311 | 3539 | 3.70 | |||
Note: Temperature in the chart is the bell temperature after running @75% throttle on 44.4V for 10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.） | ||||||||||

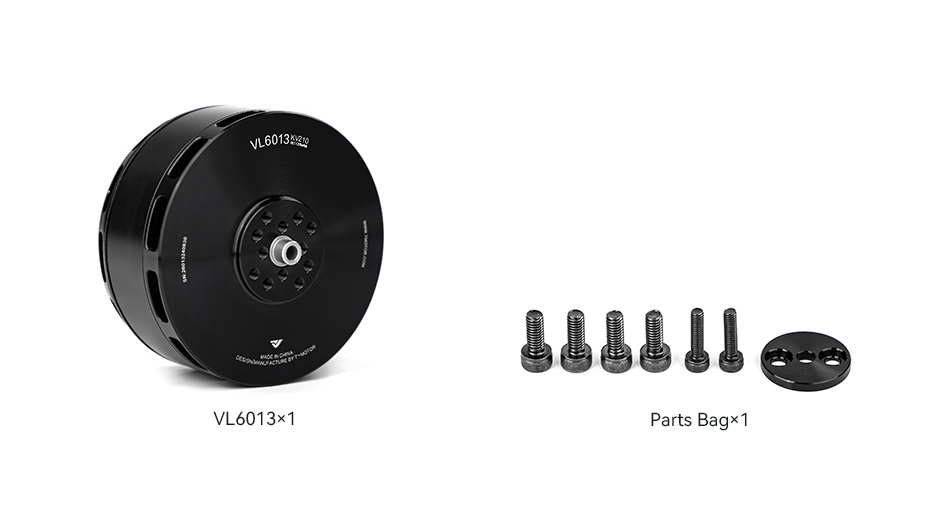

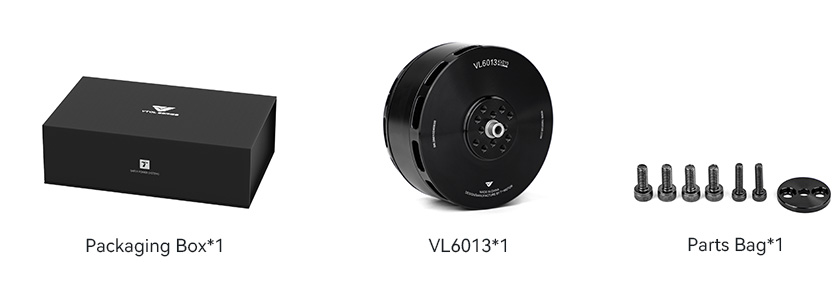

Packing List
