VL8015 KV170
MOTOR
V80A
ESC
G26
PROPELLER
Recommendation
12S
Voltage
14.8kg
Max.Thrust/Arm
25kg
Recommended MTOW(Quad)
Technical Drawing
Specification
| Model No. | VL8015 | Magnet Level | 180℃ |
| Motor Size | Φ88.8*42mm | Lead Cable | Silicone wire14# 1000mm |
| Stator | 150°C high temperature -resisting coatings | Copper Wire | 220℃ |
| Configuration | 24N28P | Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | ≤10mg |
| Bearing | Imported 6901 | IP | IPX5 |
| CentrifugalCooling Design | YES | Package Size | 150*120*57mm |
| Model No. | VL8015 | KV (RPM/V) | 170 |
| Rated Voltage (LiPo) | 12S | Idle Current (15V) | 1.9A |
| Internal Resistance(25℃) | 43mΩ | Peak Current | 74A |
| Continuous Power(180s) | 1200W | Ambient Temperature | -30℃～55℃ |
| Max. Thrust | 14.8g | Motor Weight(indl. Cable) | 610g |
| ESC specs. | |||
| Model No. | V80A | Control | PWM/CAN |
| Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN |
| Peak Current (10s) | 80A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking |
| Continuous Current | 40A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector |
| Standby Consumption | ≤50mA | Output Cable | Silicone wire-orange -14AWG-110±10mm |
| Throttle Pos. Range | 1040~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm |
| Throttle RefreshFrequency | 50~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P*2-Black blank white-green yellow gray |
| Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 110g |
| Prop specs. | |||
| Model No. | G26*8.5 inch (660.4*215.9mm) | Weight (Single Blade) | 68±5g |
Test Data
| Type | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) | |
| VL8015 KV170 + V80A 14S + G26*8.5 | 40% | 44.59 | 2944 | 0.89 | 6.53 | 2450 | 291 | 10.11 | 63 (Ambient Temperature: 25) | |
| 42% | 44.60 | 3249 | 0.98 | 7.48 | 2575 | 334 | 9.74 | |||
| 44% | 44.60 | 3558 | 1.07 | 8.50 | 2696 | 379 | 9.38 | |||
| 46% | 44.60 | 3879 | 1.17 | 9.62 | 2817 | 429 | 9.04 | |||
| 48% | 44.61 | 4216 | 1.26 | 10.85 | 2935 | 484 | 8.72 | |||
| 50% | 44.61 | 4575 | 1.37 | 12.17 | 3052 | 543 | 8.43 | |||
| 52% | 44.62 | 4962 | 1.47 | 13.62 | 3167 | 608 | 8.16 | |||
| 54% | 44.62 | 5354 | 1.59 | 15.17 | 3278 | 677 | 7.91 | |||
| 56% | 44.64 | 5726 | 1.70 | 16.77 | 3391 | 748 | 7.65 | |||
| 58% | 44.64 | 6121 | 1.82 | 18.53 | 3503 | 827 | 7.40 | |||
| 60% | 44.63 | 6509 | 1.93 | 20.32 | 3617 | 907 | 7.18 | |||
| 62% | 44.62 | 6920 | 2.05 | 22.23 | 3726 | 992 | 6.98 | |||
| 64% | 44.61 | 7329 | 2.17 | 24.26 | 3835 | 1082 | 6.77 | |||
| 66% | 44.60 | 7762 | 2.29 | 26.47 | 3940 | 1180 | 6.58 | |||
| 68% | 44.59 | 8178 | 2.42 | 28.73 | 4044 | 1281 | 6.38 | |||
| 70% | 44.57 | 8615 | 2.55 | 31.20 | 4145 | 1391 | 6.20 | |||
| 80% | 44.37 | 10932 | 3.23 | 45.81 | 4635 | 2032 | 5.38 | |||
| 90% | 44.04 | 13323 | 3.95 | 65.64 | 5093 | 2891 | 4.61 | |||
| 100% | 43.77 | 14233 | 4.23 | 84.17 | 5278 | 3684 | 3.86 | |||
| VL8015 KV170 + V80A 14S + G26*8.5 | 40% | 50.33 | 3722 | 1.10 | 7.98 | 2742 | 402 | 9.26 | 63 (Ambient Temperature: 25) | |
| 42% | 50.34 | 4099 | 1.21 | 9.17 | 2876 | 462 | 8.88 | |||
| 44% | 50.37 | 4499 | 1.33 | 10.48 | 3010 | 528 | 8.52 | |||
| 46% | 50.39 | 4916 | 1.45 | 11.88 | 3141 | 599 | 8.21 | |||
| 48% | 50.40 | 5364 | 1.58 | 13.44 | 3268 | 678 | 7.92 | |||
| 50% | 50.41 | 5787 | 1.70 | 15.04 | 3398 | 758 | 7.63 | |||
| 52% | 50.43 | 6228 | 1.83 | 16.80 | 3523 | 847 | 7.35 | |||
| 54% | 50.43 | 6683 | 1.97 | 18.66 | 3648 | 941 | 7.10 | |||
| 56% | 50.44 | 7173 | 2.11 | 20.71 | 3771 | 1045 | 6.87 | |||
| 58% | 50.43 | 7646 | 2.25 | 22.78 | 3891 | 1149 | 6.65 | |||
| 60% | 50.43 | 8136 | 2.39 | 25.08 | 4008 | 1265 | 6.43 | |||
| 62% | 50.42 | 8616 | 2.53 | 27.45 | 4129 | 1384 | 6.23 | |||
| 64% | 50.40 | 9103 | 2.68 | 29.97 | 4244 | 1511 | 6.03 | |||
| 66% | 50.37 | 9613 | 2.83 | 32.66 | 4355 | 1645 | 5.84 | |||
| 68% | 50.34 | 10111 | 2.98 | 35.47 | 4465 | 1785 | 5.66 | |||
| 70% | 50.30 | 10607 | 3.13 | 38.42 | 4574 | 1933 | 5.49 | |||
| 80% | 50.18 | 12159 | 3.59 | 48.39 | 4876 | 2428 | 5.01 | |||
| 90% | 50.00 | 13673 | 4.04 | 60.23 | 5164 | 3012 | 4.54 | |||
| 100% | 49.80 | 14842 | 4.40 | 73.75 | 5377 | 3673 | 4.04 | |||
Note: Temperature in the chart is the bell temperature after running @75% throttle on 44.4V for 10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.） | ||||||||||

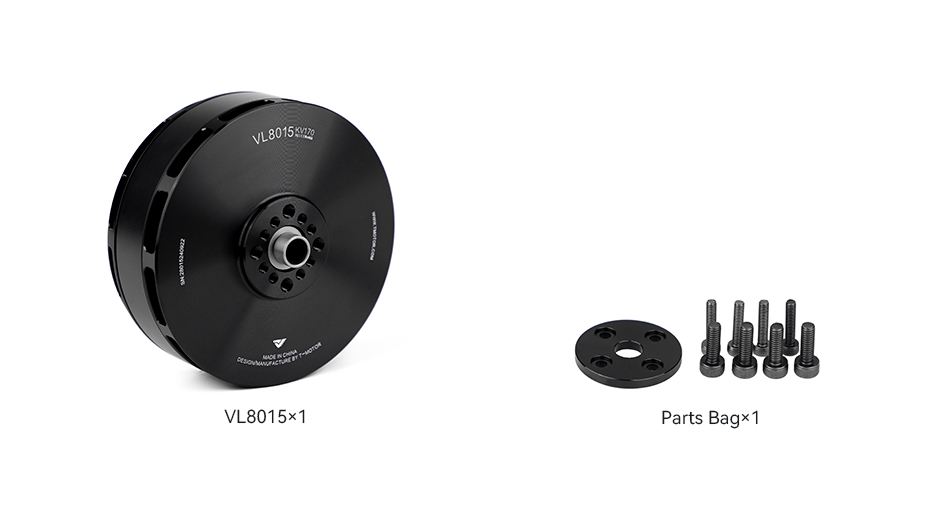

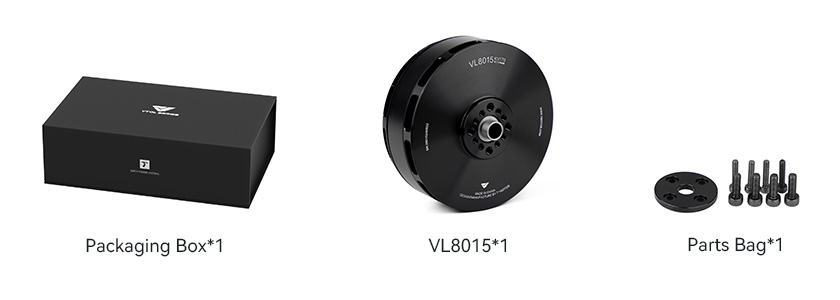

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
