VL8018 KV180
MOTOR
V120A
ESC
G26
PROPELLER
Recommendation
12S
Voltage
17.6kg
Max.Thrust/Arm
30~32kg
Recommended MTOW(Quad)
Technical Drawing
Specification
| Model No. | VL8018 | Magnet Level | 180℃ |
| Motor Size | Φ88.8*43.5mm | Lead Cable | Silicone wire14# 1000mm |
| Stator | 150°C high temperature -resisting coatings | Copper Wire | 220℃ |
| Configuration | 24N28P | Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 12 OUT: 10 | Rotor Dynamic BalanceStandard | ≤10mg |
| Bearing | Imported 6901 | IP | IPX5 |
| CentrifugalCooling Design | YES | Package Size | 150*120*57mm |
| Model No. | VL8018 | KV (RPM/V) | 180 |
| Rated Voltage (LiPo) | 12S | Idle Current (15V) | 2.2A |
| Internal Resistance(25℃) | 37mΩ | Peak Current | 100A |
| Continuous Power(180s) | 1600W | Ambient Temperature | -30℃～55℃ |
| Max. Thrust | 17.6kg | Motor Weight(indl. Cable) | 655g |
| ESC specs. | |||
| Model No. | V120A | Control | PWM/CAN |
| Max. Voltage | 60V | Protocol | DRONE CAN/UAV CAN |
| Peak Current (10s) | 130A (Under certain heat dissipation conditions) | Propeller-locking | ElectronicPropeller -locking |
| Continuous Current | 60A (Under certain heat dissipation conditions) | Encoder cables | Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector |
| Standby Consumption | ≤50mA | Output Cable | Silicone wire-orange -12AWG-85±10mm |
| Throttle Pos. Range | 1040~1940us (fixed) | Input Cable | Silicone wire-red/black -12AWG-180±10mm |
| Throttle RefreshFrequency | 50~500Hz | Signal Cable | Shielded cables-Black -OD4.2-5C-500±10-JP -3P*2-Black blank white -green yellow gray |
| Throttle ResponseSpeed | 300ms | Weight (Incl. cables) | 170g |
| Prop specs. | |||
| Model No. | G26*8.5 inch (660.4*215.9mm) | Weight (Single Blade) | 68±5g |
Test Data
| Type | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) | |
| VL8018 KV180 + V120A 14S + G26*8.5 | 40% | 44.38 | 3277 | 1.01 | 7.97 | 2628 | 354 | 9.26 | 59 (Ambient Temperature: 25) | |
| 42% | 44.35 | 3623 | 1.11 | 9.14 | 2758 | 405 | 8.94 | |||
| 44% | 44.33 | 3971 | 1.22 | 10.41 | 2886 | 461 | 8.61 | |||
| 46% | 44.29 | 4349 | 1.32 | 11.78 | 3014 | 522 | 8.34 | |||
| 48% | 44.25 | 4741 | 1.44 | 13.28 | 3140 | 587 | 8.07 | |||
| 50% | 44.22 | 5123 | 1.55 | 14.85 | 3266 | 657 | 7.80 | |||
| 52% | 44.18 | 5527 | 1.67 | 16.55 | 3390 | 731 | 7.56 | |||
| 54% | 44.13 | 5980 | 1.81 | 18.48 | 3517 | 816 | 7.33 | |||
| 56% | 44.09 | 6424 | 1.94 | 20.50 | 3638 | 904 | 7.11 | |||
| 58% | 44.05 | 6860 | 2.07 | 22.62 | 3757 | 996 | 6.89 | |||
| 60% | 44.00 | 7328 | 2.20 | 24.87 | 3875 | 1094 | 6.70 | |||
| 62% | 43.95 | 7794 | 2.34 | 27.25 | 3991 | 1198 | 6.51 | |||
| 64% | 43.90 | 8246 | 2.47 | 29.72 | 4105 | 1305 | 6.32 | |||
| 66% | 43.85 | 8720 | 2.61 | 32.34 | 4218 | 1418 | 6.15 | |||
| 68% | 43.79 | 9188 | 2.76 | 35.13 | 4329 | 1538 | 5.97 | |||
| 70% | 43.73 | 9667 | 2.90 | 38.08 | 4436 | 1665 | 5.80 | |||
| 80% | 43.34 | 12133 | 3.65 | 55.09 | 4940 | 2388 | 5.08 | |||
| 90% | 42.93 | 14394 | 4.34 | 75.04 | 5364 | 3222 | 4.47 | |||
| 100% | 42.48 | 16107 | 4.88 | 95.16 | 5657 | 4043 | 3.98 | |||
| VL8018 KV180 + V120A 14S + G26*8.5 | 40% | 49.91 | 4097 | 1.25 | 9.65 | 2927 | 482 | 8.50 | 59 (Ambient Temperature: 25) | |
| 42% | 49.88 | 4525 | 1.37 | 11.08 | 3071 | 553 | 8.19 | |||
| 44% | 49.84 | 4967 | 1.50 | 12.60 | 3213 | 628 | 7.91 | |||
| 46% | 49.81 | 5423 | 1.64 | 14.29 | 3353 | 712 | 7.62 | |||
| 48% | 49.76 | 5900 | 1.78 | 16.15 | 3488 | 804 | 7.34 | |||
| 50% | 49.73 | 6392 | 1.92 | 18.09 | 3606 | 899 | 7.11 | |||
| 52% | 49.68 | 6894 | 2.07 | 20.20 | 3758 | 1004 | 6.87 | |||
| 54% | 49.64 | 7388 | 2.22 | 22.46 | 3890 | 1115 | 6.63 | |||
| 56% | 49.61 | 7938 | 2.38 | 24.89 | 4021 | 1235 | 6.43 | |||
| 58% | 49.55 | 8452 | 2.53 | 27.45 | 4147 | 1360 | 6.22 | |||
| 60% | 49.49 | 8996 | 2.70 | 30.16 | 4273 | 1493 | 6.03 | |||
| 62% | 49.42 | 9529 | 2.86 | 33.03 | 4397 | 1632 | 5.84 | |||
| 64% | 49.35 | 10077 | 3.03 | 36.12 | 4519 | 1783 | 5.65 | |||
| 66% | 49.28 | 10632 | 3.19 | 39.32 | 4642 | 1938 | 5.49 | |||
| 68% | 49.21 | 11190 | 3.36 | 42.71 | 4755 | 2102 | 5.32 | |||
| 70% | 49.14 | 11751 | 3.52 | 46.19 | 4867 | 2270 | 5.18 | |||
| 80% | 48.74 | 14450 | 4.34 | 66.04 | 5353 | 3219 | 4.49 | |||
| 90% | 48.28 | 16458 | 4.97 | 87.07 | 5712 | 4204 | 3.91 | |||
| 100% | 48.03 | 17587 | 5.22 | 99.04 | 5855 | 4756 | 3.63 | |||
| Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.） | ||||||||||

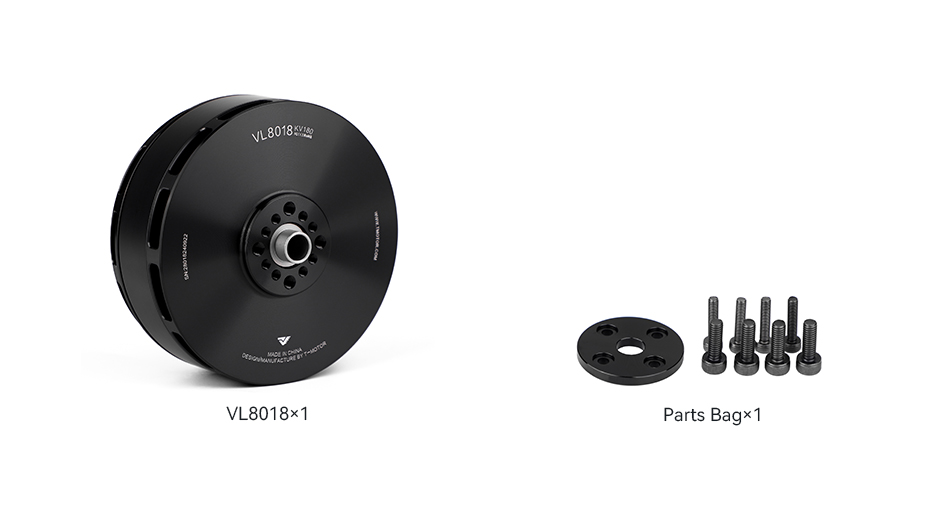

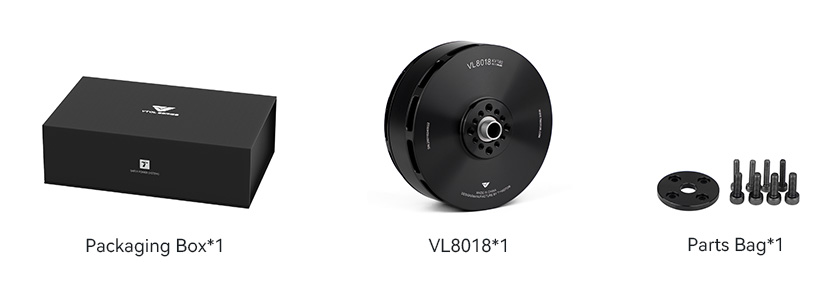

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
