Antigravity MN1005 V2.0

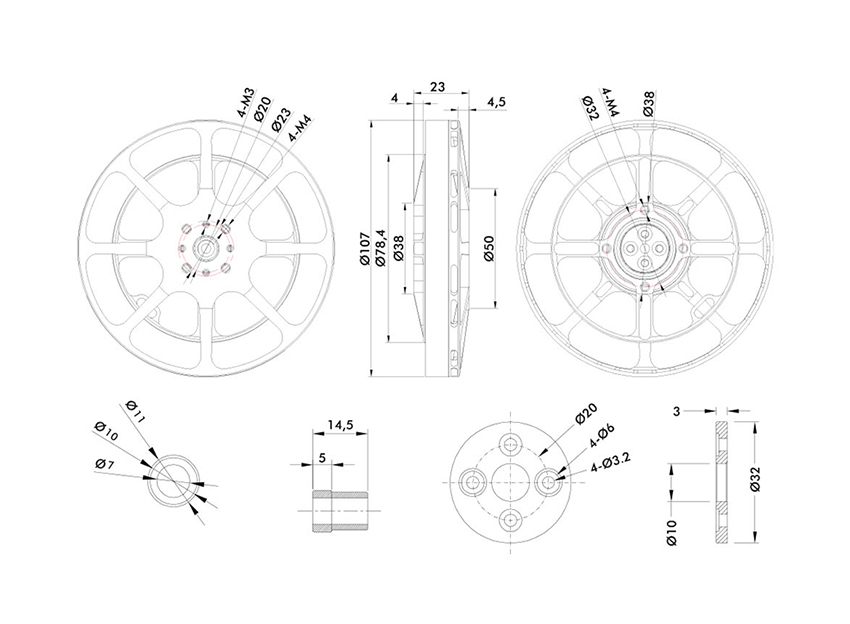

Technical Drawing


Specification

Test Item	MN1005 V2.0	Lead Cable	Enamelled wire 100mm
Motor Size	Φ107*23mm	Copper Wire	220℃high temperature resistance
Stator	180℃high temperature-resisting coatings	Coil Insulation Test	500V
Configuration	36N42P	Centrifugal Cooling Design	NO
Shaft Diameter	IN：17mm	Rotor Dynamic Balance Standard	≤15Mg
Bearing	Imported 6803ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃high temperature resistance

KV	100	Rated Voltage (Lipo)	12S
Idle Current (10V)	0.9A	Internal Resistance	168mΩ
Peak Current (180s)	32A	Weight (Incl. Cable)	282g
Max. Power (180s)	1500W	Package Weight	410g

KV	100	Rated Voltage (Lipo)	12S
Idle Current (15V)	1.07A	Internal Resistance	110mΩ
Peak Current (180s)	47A	Weight (Incl. Cable)	292g
Max. Power (180s)	2220W	Package Weight	420g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN1005 V2.0 KV90	T-MOTOR G30*10.5”	40%	47.94	2096	0.74	3.30	1599	158	13.25	93 (Ambient Temperature:23℃)
		42%	47.93	2318	0.81	3.72	1659	178	13.01
		44%	47.92	2503	0.87	4.10	1715	196	12.75
		46%	47.90	2678	0.93	4.54	1772	218	12.30
		48%	47.89	2886	1.00	5.00	1830	239	12.05
		50%	47.88	3050	1.07	5.48	1890	262	11.63
		52%	47.87	3247	1.13	5.94	1944	284	11.42
		54%	47.86	3455	1.19	6.42	2001	307	11.24
		56%	47.84	3733	1.29	7.32	2095	350	10.67
		58%	47.83	3901	1.35	7.84	2144	375	10.40
		60%	47.82	4061	1.41	8.33	2187	398	10.19
		62%	47.80	4292	1.48	8.97	2241	429	10.01
		64%	47.79	4506	1.55	9.64	2287	461	9.78
		66%	47.78	4710	1.63	10.27	2337	491	9.60
		68%	47.76	4918	1.70	11.01	2382	526	9.35
		70%	47.74	5106	1.77	11.73	2431	560	9.12
		80%	47.66	6143	2.12	15.49	2658	738	8.32
		90%	47.57	7130	2.46	19.68	2869	936	7.62
		100%	47.44	8459	2.92	26.03	3116	1235	6.85
MN1005 V2.0 KV90	T-MOTOR G32*11”	40%	47.91	2607	0.98	4.23	1559	203	12.87	HOT (Ambient Temperature:23℃)
		42%	47.90	2854	1.06	4.73	1608	226	12.61
		44%	47.89	3068	1.14	5.24	1666	251	12.23
		46%	47.87	3247	1.20	5.69	1716	272	11.92
		48%	47.86	3463	1.28	6.23	1772	298	11.61
		50%	47.85	3691	1.36	6.82	1827	326	11.31
		52%	47.83	3880	1.43	7.40	1880	354	10.96
		54%	47.82	4105	1.51	7.97	1930	381	10.77
		56%	47.81	4327	1.59	8.63	1983	413	10.49
		58%	47.79	4586	1.68	9.41	2033	450	10.20
		60%	47.76	4962	1.82	10.68	2105	510	9.73
		62%	47.75	5215	1.90	11.45	2144	546	9.54
		64%	47.73	5367	1.96	12.07	2191	576	9.31
		66%	47.72	5590	2.05	12.88	2232	615	9.09
		68%	47.70	5823	2.13	13.70	2280	654	8.91
		70%	47.68	6015	2.20	14.45	2321	689	8.73
		80%	47.58	7091	2.59	18.95	2514	902	7.86
		90%	47.48	8071	2.95	23.75	2688	1128	7.16
		100%	47.33	9323	3.40	30.76	2882	1456	6.40
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
MN1005 V2.0 KV100	T-MOTOR G30*10.5”	40%	47.94	3063	1.09	5.37	1749	258	11.89	85 (Ambient Temperature:25℃)
		42%	47.92	3316	1.17	6.03	1813	289	11.48
		44%	47.91	3556	1.26	6.65	1875	319	11.16
		46%	47.89	3789	1.34	7.29	1933	349	10.86
		48%	47.86	4211	1.48	8.59	1993	411	10.24
		50%	47.84	4434	1.56	9.21	2085	441	10.06
		52%	47.81	4682	1.65	10.00	2130	478	9.79
		54%	47.80	4945	1.74	10.80	2181	516	9.58
		56%	47.78	5185	1.82	11.62	2233	555	9.34
		58%	47.76	5446	1.91	12.46	2281	595	9.16
		60%	47.73	5694	1.99	13.34	2329	637	8.94
		62%	47.71	5968	2.09	14.31	2378	683	8.74
		64%	47.68	6232	2.18	15.33	2426	731	8.53
		66%	47.65	6483	2.27	16.27	2469	775	8.36
		68%	47.63	6735	2.35	17.32	2514	825	8.16
		70%	47.60	7017	2.45	18.35	2558	874	8.03
		80%	47.45	8290	2.90	23.89	2759	1134	7.31
		90%	47.28	9632	3.37	30.64	2930	1449	6.65
		100%	47.03	11282	3.95	40.12	3110	1887	5.98
MN1005 V2.0 KV100	T-MOTOR G32*11”	40%	47.90	3681	1.37	6.60	1749	316	11.65	HOT (Ambient Temperature:25℃)
		42%	47.88	3957	1.47	7.33	1813	351	11.28
		44%	47.86	4243	1.57	8.12	1875	389	10.91
		46%	47.83	4507	1.67	8.90	1933	426	10.59
		48%	47.81	4795	1.77	9.74	1993	466	10.30
		50%	47.77	5262	1.94	11.38	2085	543	9.68
		52%	47.76	5506	2.03	12.10	2130	578	9.53
		54%	47.73	5787	2.13	13.07	2181	624	9.28
		56%	47.70	6090	2.24	14.11	2233	673	9.05
		58%	47.68	6374	2.34	15.12	2281	721	8.84
		60%	47.65	6655	2.45	16.19	2329	771	8.63
		62%	47.62	6938	2.55	17.33	2378	825	8.41
		64%	47.59	7246	2.67	18.52	2426	881	8.22
		66%	47.55	7514	2.76	19.67	2469	935	8.03
		68%	47.52	7805	2.87	20.93	2514	995	7.85
		70%	47.48	8092	2.98	22.27	2558	1057	7.65
		80%	47.31	9456	3.48	29.02	2759	1373	6.89
		90%	47.11	10723	3.96	36.54	2930	1722	6.23
		100%	46.83	12099	4.47	47.41	3110	2220	5.45
Note: Motor temperature is motor surface temperature at 85% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

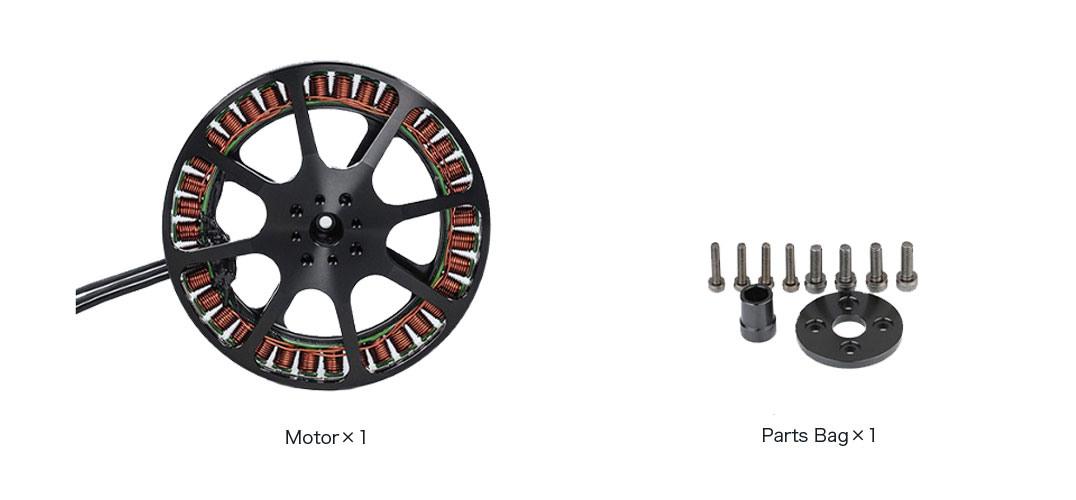

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
