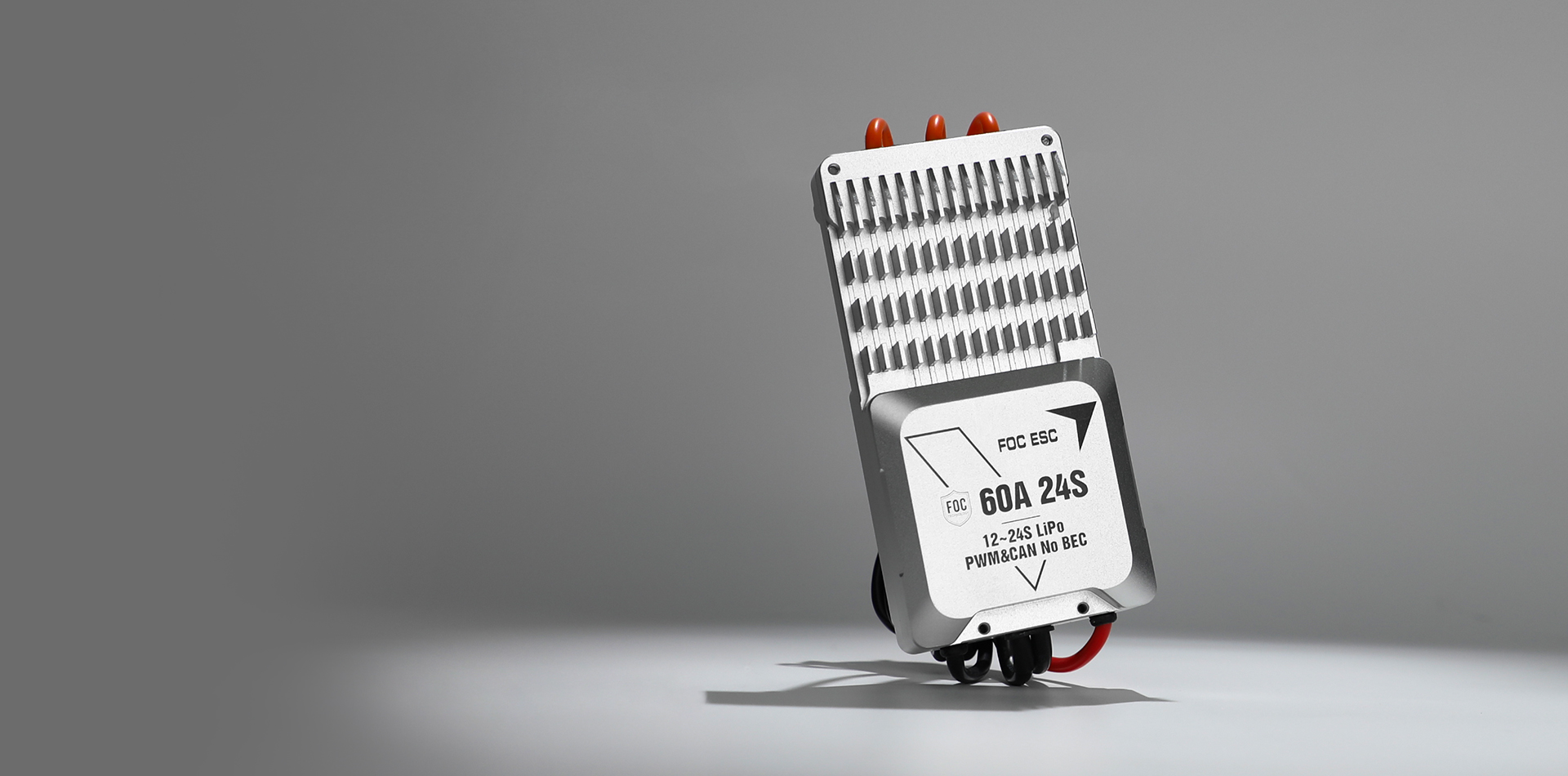

V60A 24S

V SERIES ESC

V60A 24S

THE ADVANCED EDITION OF FOC ESCS

Fast
Response

Efficient
Driving

Accurate
Control

Low-Noise
Operation

Recommendation

U13 II

Motor

V60A 24S

ESC

G32

Propeller

Specification

12~24S (Max 105V)

Support Voltage

35A

Con. Current

65A

Peak Current

180g(Excl. Cable)/283.5g

ESC Weight

115*57*26.5mm

ESC Size

Technical Drawing

V60A 24S-en.png

Specification

ModelNo.	V60A24S	PowerCable	SiliconeWire-Red/ Black-14AWG-1200mm
Size	1155726.5mm(LWH)	SignalCable	ShieldedCables-Black- OD4.2-5C-330mm-JP- 3P*2-BlackBlankWhite- GreenYellowGray
Weight(Incl.Cables)	283.5g	EncoderCables	ShieldedCables-Black- 24AWG-5C-370mm- M6AviationConnector
MotorCable	SiliconeWire-Orange- 14AWG-250mm	Protocol	PWM/CAN
SupportVoltage	12~24S(Max105V)	BEC	NO
ContinuousCurrent	35A	ThrottlePos.Range	1040~1940
PeakCurrent(<10s)	65A	ThrottleRefresh Frequency	50~500Hz
StandbyConsumption	≤50mA@100V	Throttle ResponseSpeed	300ms

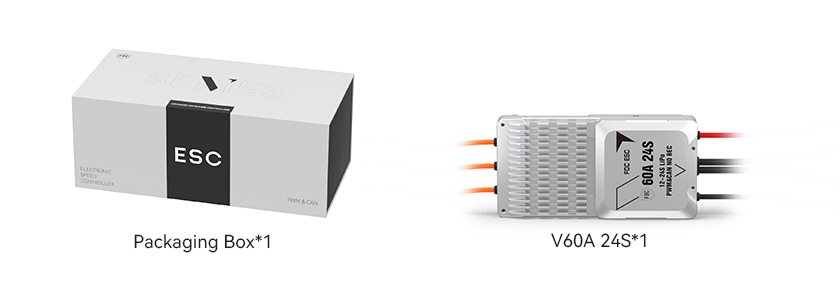

Packing List

V60A 24S-pack-en.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
