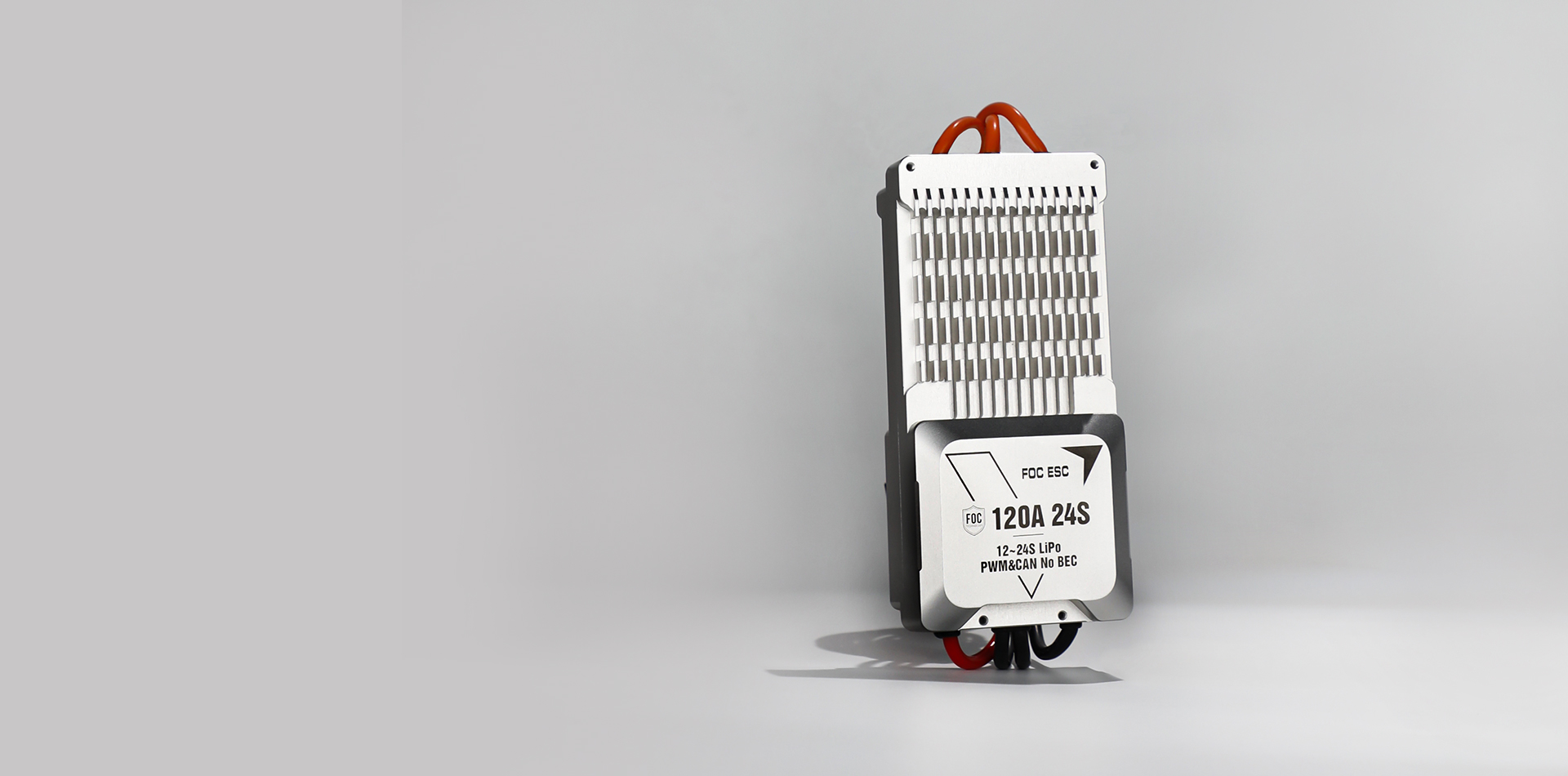

V120A 24S

V SERIES ESC

V120A 24S

THE ADVANCED EDITION OF FOC ESCS

Fast
Response

Efficient
Driving

Accurate
Control

Low-Noise
Operation

Recommendation

V13L

Motor

V120A 24S

ESC

G36

Propeller

Specification

12~24S (Max 105V)

Support Voltage

65A

Con. Current

135A

Peak Current

307g(Excl. Cable)/460.5g

ESC Weight

133*62*38mm

ESC Size

Technical Drawing

Specification

ModelNo.	V120A24S	PowerCable	SiliconeWire-Red/ Black-12AWG-1200mm
Size	1336238mm(LWH)	SignalCable	ShieldedCables-Black- OD4.2-5C-500mm-JP- 3P*2-BlackBlankWhite- GreenYellowGray
Weight(Incl.Cables)	460.5g	EncoderCables	ShieldedCables-Black- 24AWG-5C-460mm- M6AviationConnector
MotorCable	SiliconeWire-Orange- 12AWG-250mm	Protocol	PWM/CAN
SupportVoltage	12~24S(Max105V)	BEC	NO
ContinuousCurrent	65A	ThrottlePos.Range	1040~1940
PeakCurrent(<10s)	135A	ThrottleRefresh Frequency	50~500Hz
StandbyConsumption	≤50mA@100V	Throttle ResponseSpeed	300ms

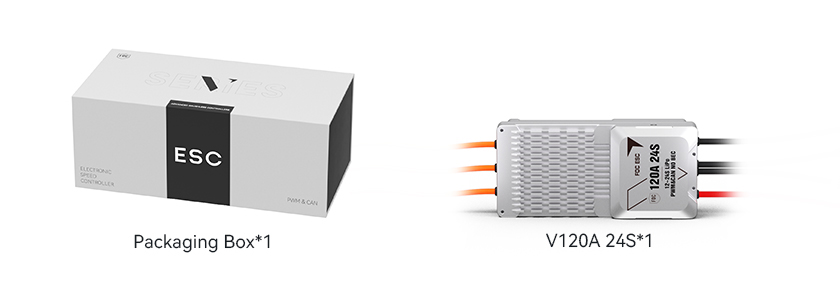

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
