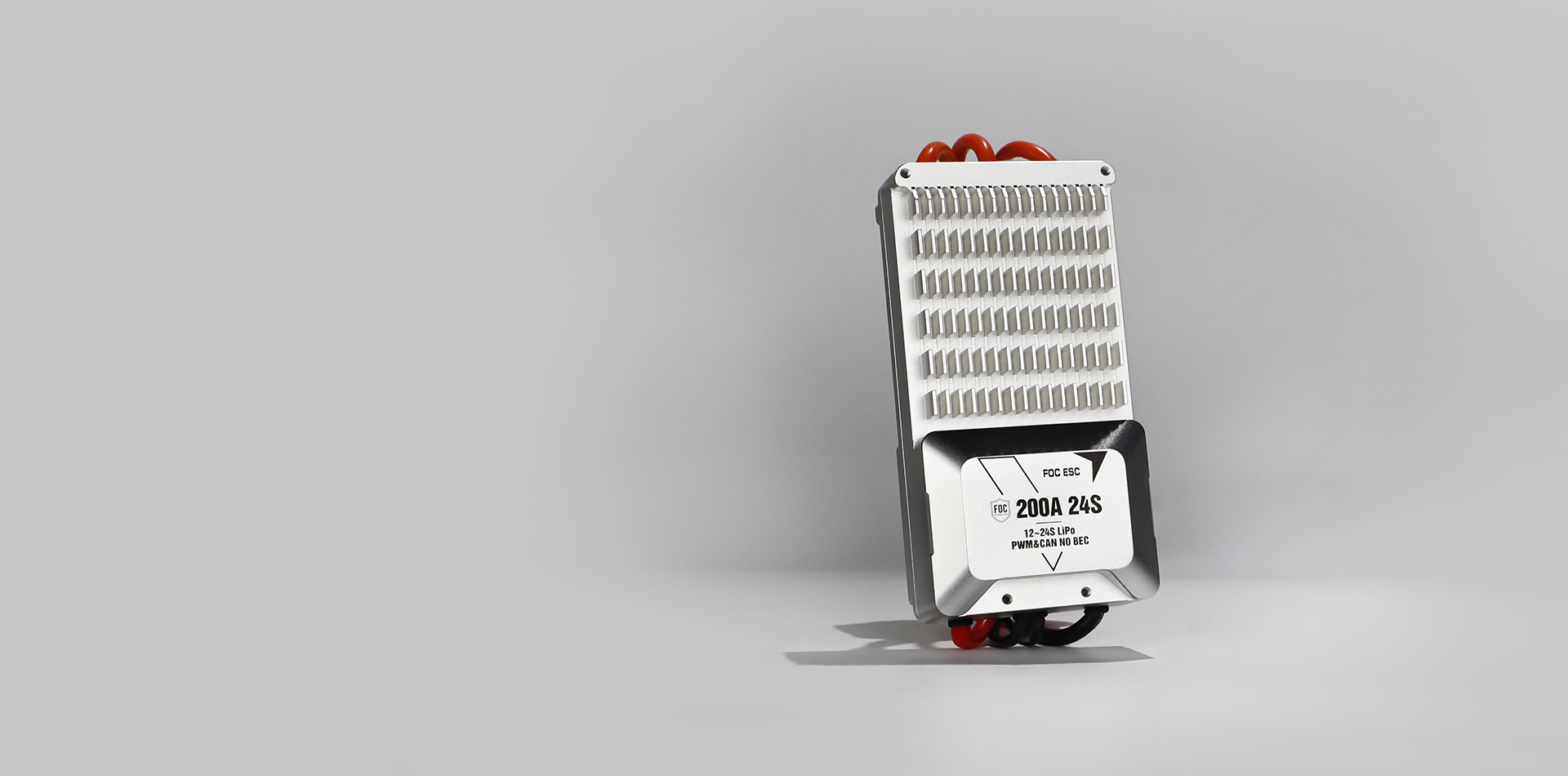

V200A 24S

V SERIES ESC

V200A 24S

THE ADVANCED EDITION OF FOC ESCS

Fast
Response

Efficient
Driving

Accurate
Control

Low-Noise
Operation

Recommendation

V13L

Motor

V200A 24S

ESC

G38

Propeller

Specification

12~24S (Max 105V)

Support Voltage

100A

Con. Current

200A

Peak Current

580g(Excl. Cable)/748g

ESC Weight

146*74*39.5mm

ESC Size

Technical Drawing

Specification

ModelNo.	V200A24S	PowerCable	SiliconeWire-Red/ Black-10AWG-1200mm
Size	1467439.5mm(LWH)	SignalCable	ShieldedCables-Black- OD4.2-5C-500mm-JP- 3P*2-BlackBlankWhite- GreenYellowGray
Weight(Incl.Cables)	748g	EncoderCables	ShieldedCables-Black- 24AWG-5C-460mm- M6AviationConnector
MotorCable	SiliconeWire-Orange- 10AWG-250mm	Protocol	PWM/CAN
SupportVoltage	12~24S(Max105V)	BEC	NO
ContinuousCurrent	100A	ThrottlePos.Range	1040~1940
PeakCurrent(<10s)	200A	ThrottleRefresh Frequency	50~500Hz
StandbyConsumption	≤50mA@100V	Throttle ResponseSpeed	300ms

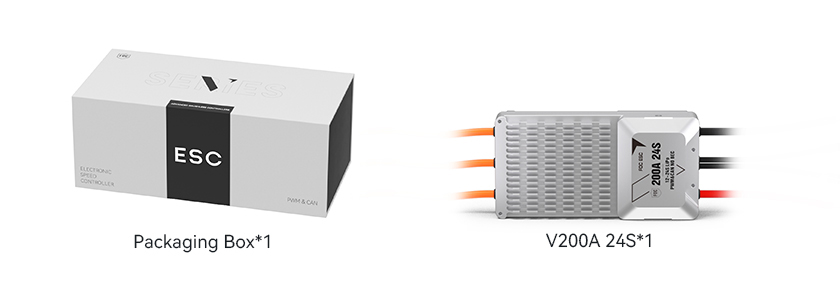

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
