Air Gear 355 (Quick-Release Version)

AIR355 Combo
(Quick-Release Version)

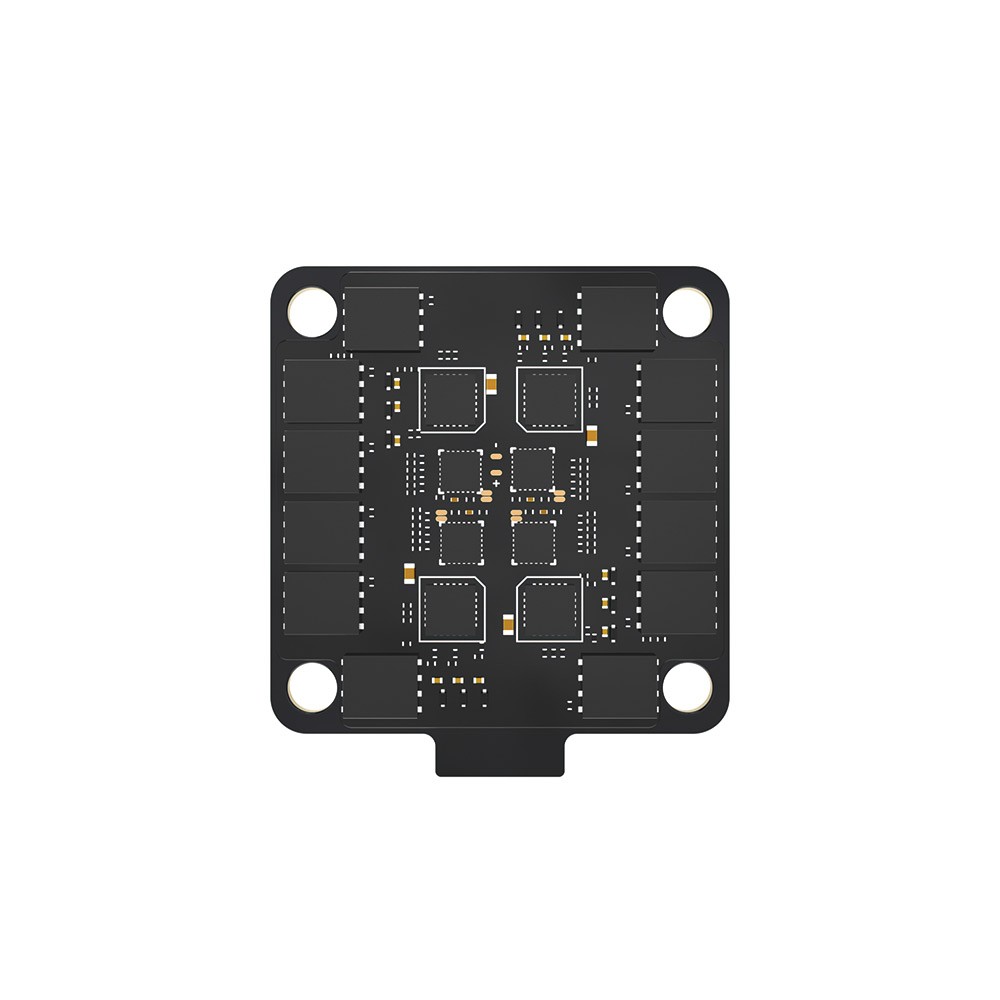

New Version AIR 20A ESC (4IN1)

Quick-Release Structure Design

The foolproof structural design and markings enable easier
and more streamlined assembly and disassembly.

New Version

AIR 20A ESC (4IN1)

Overall Combo Weight

(Motor+Prop+ESC)

Decrease By 13%%

Recommendations

Multirotor Motor/KV: AIR2213/KV1000 (Quick-Release Version)

Multirotor Thrust/Arm (kg): 0.4~0.5

Propeller: MF9545 (Quick-Release Version)

MTOW-Quadcopter (kg): 1.6~2.0

ESC: AIR 20A (4IN1)

MTOW-Hexacopter (kg): 2.4~3.0

Battery (LiPo)/ Voltage: 3~4S (4.2V/PC)/12.6~16V

MOTW-Octocopter (kg): 3.2~4.0 (Non-Coaxial)

*Attention: A loss of 25% should be considered for coaxial configuration.

Technical Drawing

Specification

KV	1000	Rated Voltage (LiPo)	3~4S (4.2V/PC)/12.6V-16V
Idle Current (10V)	0.5A	Internal Resistance	140±10mΩ (Lead Wire300mm）
Peak Current (180s)	15A/Continuous	Weight (Incl. Cable)	56±2g (Lead Wire300mm）
Max Power (180s)	238W/Continuous	Package Weight	/

AIR 20A 4IN1-Specifications
Size (LWH)	37.341.51.6mm	Rated Voltage (LiPo)	2~4S
Continuous Current	20A	BEC	/
Peak Current (10s)	30A	Weight (Incl. Cable)	8.1g
Banana Plug	30.5*30.5/φ4mm	Throttle Signal Frequency	50~400Hz

MF9545-Specifications
Plastic Propeller	MF9545	Working Temp	-10~40℃
Weight (Single Propeller)	3.36g	Storage Temp	10~35℃
Material	Nylon+Glass Fiber	Storage Humidity	65±20% RH
Surface Treatment	Matte Technology	Optimum RPM	6000~7000RPM/min
Propeller Type	Polymer Propeller	Thrust Limitation	1.5kg

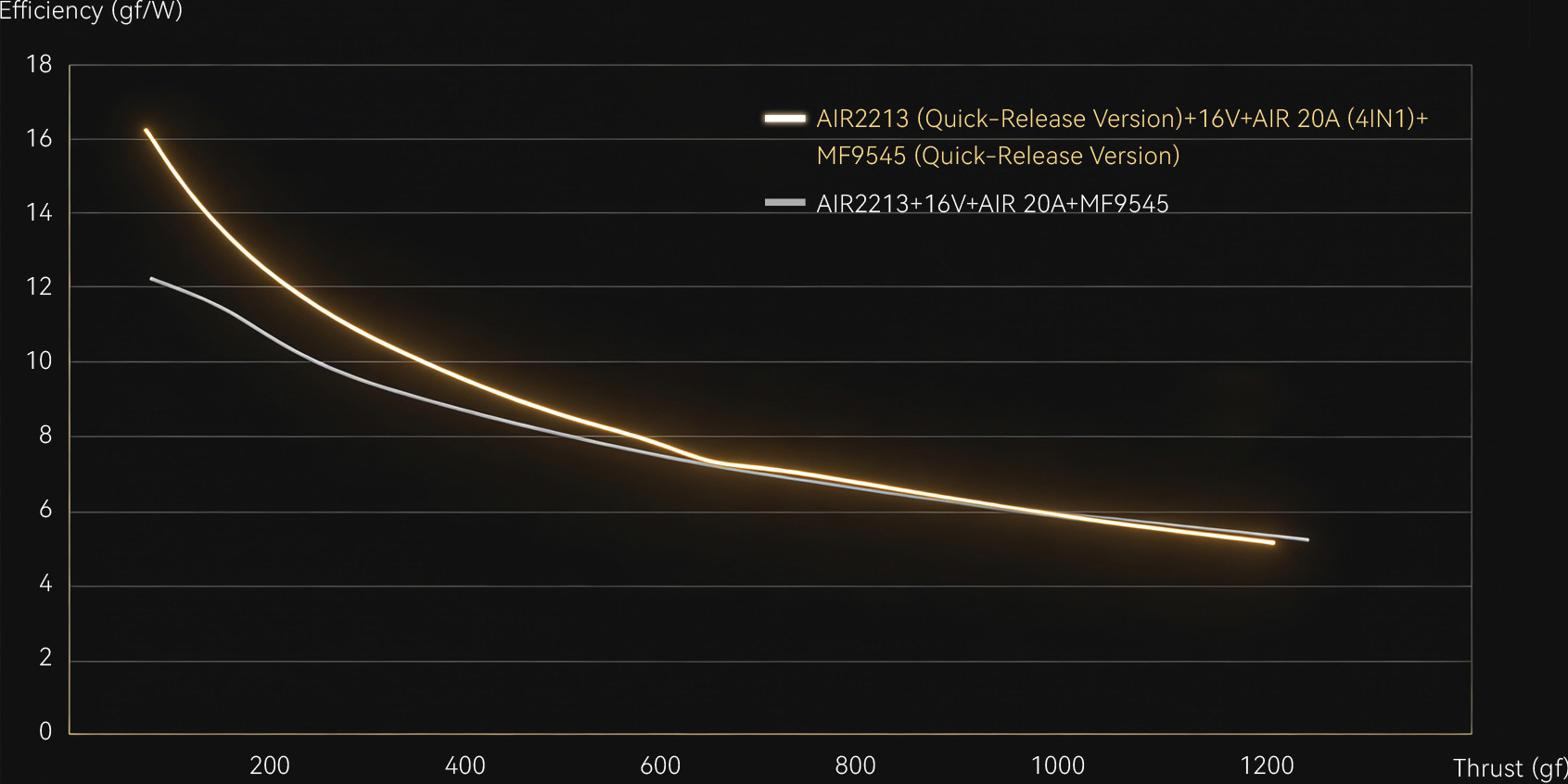

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Efficiency (gf/W)	Operating Temperature (℃)
AIR2213-KV1000	MF9545	30%	16.05	171	0.02	0.82	4055	13	13.06	47 (Ambient Temperature: 25)
		35%	16.05	227	0.03	1.20	4653	19	11.85
		40%	16.05	287	0.04	1.66	5212	26	10.83
		45%	16.05	357	0.05	2.25	5801	36	9.94
		50%	16.05	427	0.05	2.92	6329	47	9.17
		55%	16.04	497	0.06	3.67	6828	58	8.51
		60%	16.03	573	0.07	4.54	7314	72	7.94
		65%	16.01	641	0.08	5.51	7754	88	7.31
		70%	16	724	0.09	6.49	8202	103	7.04
		75%	15.99	803	0.10	7.59	8631	120	6.68
		80%	15.97	883	0.11	8.84	9046	140	6.32
		85%	15.96	963	0.12	10.16	9441	160	6.02
		90%	15.94	1043	0.13	11.58	9824	182	5.73
		95%	15.93	1123	0.14	13.13	10191	206	5.45
		100%	15.92	1202	0.15	14.73	10539	230	5.22
Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (The above data is obtained by TMOTOR's independent platform test and is only for reference. The final interpretation right belongs to TMOTOR.)

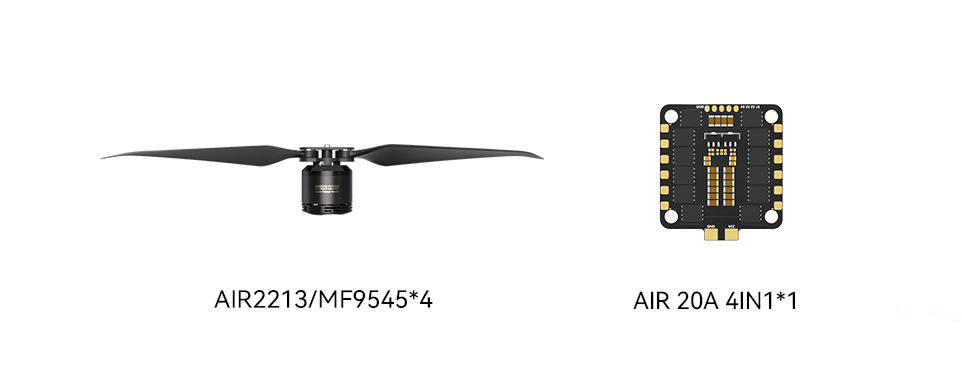

Packing List
