X-A12XL II-18S
MODULAR Propulsion System
X-A12XL II-18SMOTOR
18S FOC 150AESC
PFZ4918PPROPELLER
X-A12XL II-18S RECOMMENDATIONS
Take-off weight
120kgQuadcopterTake-off weight
180kgHexacopter
Technical Drawing
Specification
| Model No. | X-A12XL II-18S KV68 | Tube Size | 50mm |
| Setup | X-A12XL II-18S (Motor)+18S FOC 150A (ESC)+PFZ4918 (Propeller) | Wire Material, Wire Gauge, Color | Power Wires: 10#AWG Red & Black Signal Wires: 5P Teflon |
| Recommended Battery | 14~18S (LiPo) | Wire Length | 1695±10mm |
| Rated Thrust | 28~34kg | Weight | 4980±2%g (Incl. Wires+Propeller) |
| Efficiency At Rated Thrust | 7.5g/W (31kg) | IP | IPX6 |
| Max. Thrust | 74.9kg | Recommended Ambient Temperature | -20~55℃ |
| Motor Specs | |||
| Stator Size | 111*22mm | KV | 68 |
| ESC Specs | |||
| Throttle Range | 1100~1940us (Fixed) | Max. Voltage | 76V |
| Protocol | DRONE CAN、UAV CAN、 CUBE CAN | Peak Current (For A Short Time) | 150A (OpenEnvironment AndTemperature≤60℃) |
| Control Method | PWM/CAN | BEC | NO |
| Prop Specs | |||
| Model No. | PFZ4918 (Folding Carbon Fiber) | Length | 49 Inch (1245.17mm) |
Matching Table
| Type | Voltage (V) | Throttle | Current (A) | Thrust (gf) | Torque (N·m) | RPM | Motor Efficiency (%) | Overall Efficiency (gf/W) | Operating Temperature (℃) |
| X-A12XL II-18S KV68 + 18S FOC 150A + PFZ4918 | 69 | 30% | 7.37 | 7636 | 4.24 | 1009 | 87.38 | 14.87 | 73 (Ambient Temperature: 25) |
| 35% | 13.60 | 11368 | 6.33 | 1228 | 88.65 | 11.99 | |||
| 40% | 20.53 | 15637 | 8.80 | 1436 | 89.21 | 10.93 | |||
| 45% | 31.89 | 20511 | 11.50 | 1638 | 88.77 | 9.23 | |||
| 50% | 44.64 | 25709 | 14.40 | 1829 | 88.65 | 8.26 | |||
| 55% | 59.93 | 31339 | 17.67 | 2015 | 89.22 | 7.50 | |||
| 60% | 77.43 | 37157 | 20.91 | 2189 | 88.83 | 6.88 | |||
| 65% | 98.33 | 43369 | 24.53 | 2358 | 88.38 | 6.33 | |||
| 70% | 120.34 | 49584 | 28.20 | 2515 | 88.55 | 5.91 | |||
| 75% | 147.03 | 56063 | 31.90 | 2666 | 86.92 | 5.47 | |||
| 80% | 176.23 | 62428 | 35.62 | 2807 | 85.26 | 5.08 | |||
| 85% | 199.93 | 67472 | 38.60 | 2913 | 84.49 | 4.84 | |||
| 90% | 224.99 | 71830 | 41.18 | 3001 | 82.51 | 4.58 | |||
| 95% | 240.22 | 74911 | 43.02 | 3062 | 82.38 | 4.47 | |||
| 100% | 240.54 | 74847 | 43.01 | 3059 | 82.17 | 4.46 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.) | |||||||||

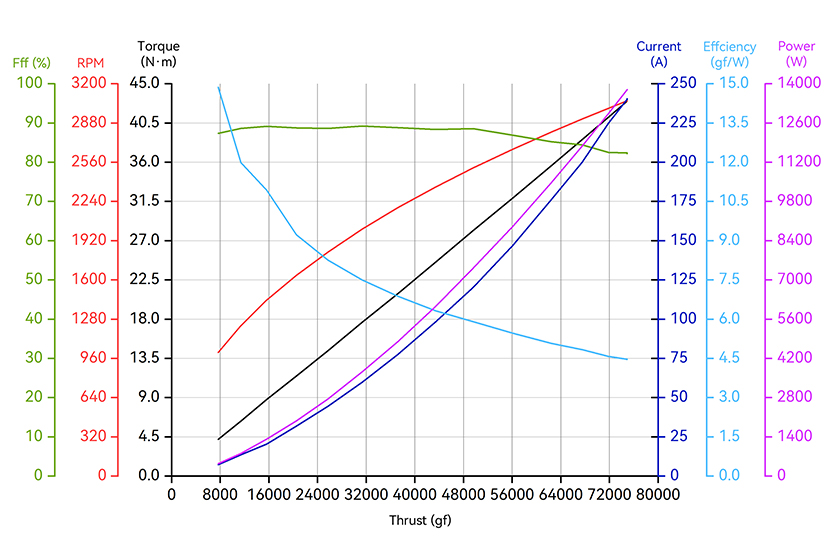

Motor Analysis Chart
Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
