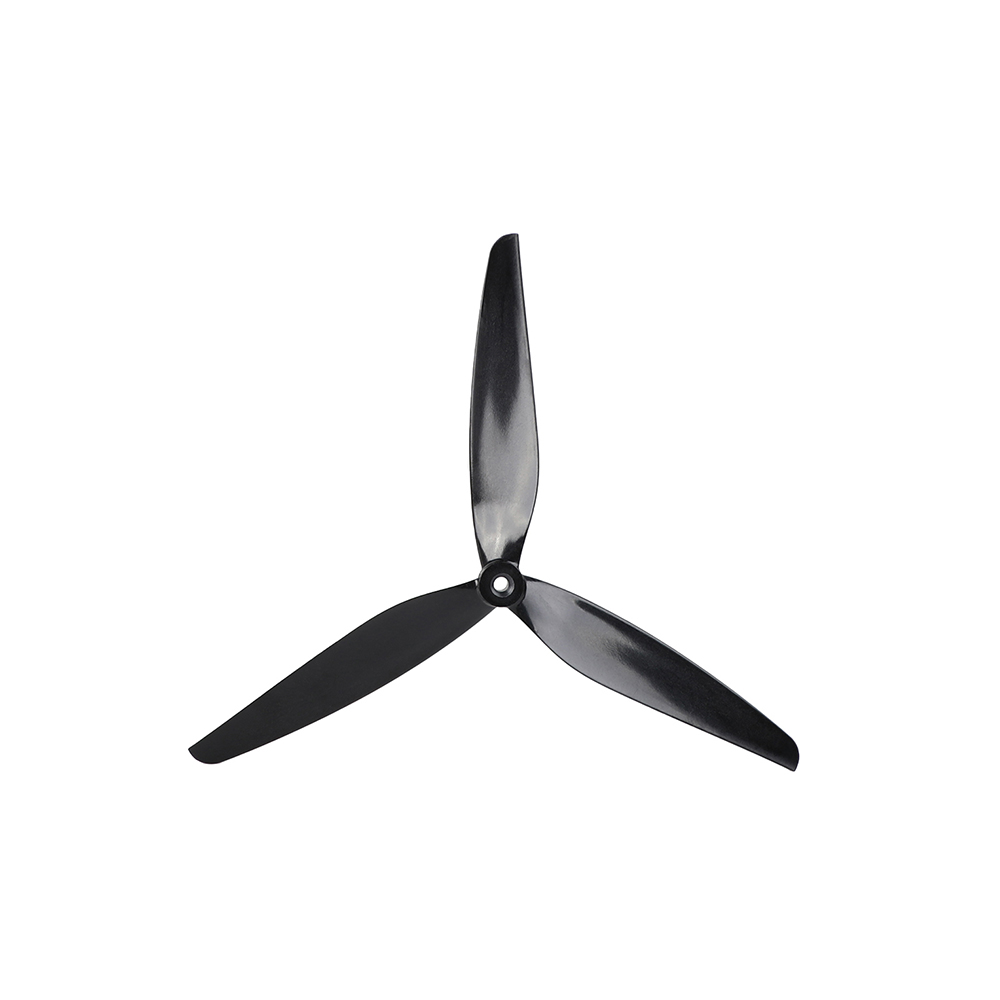

9x5 9" Industrial Glass Fiber Nylon FPV Propellers

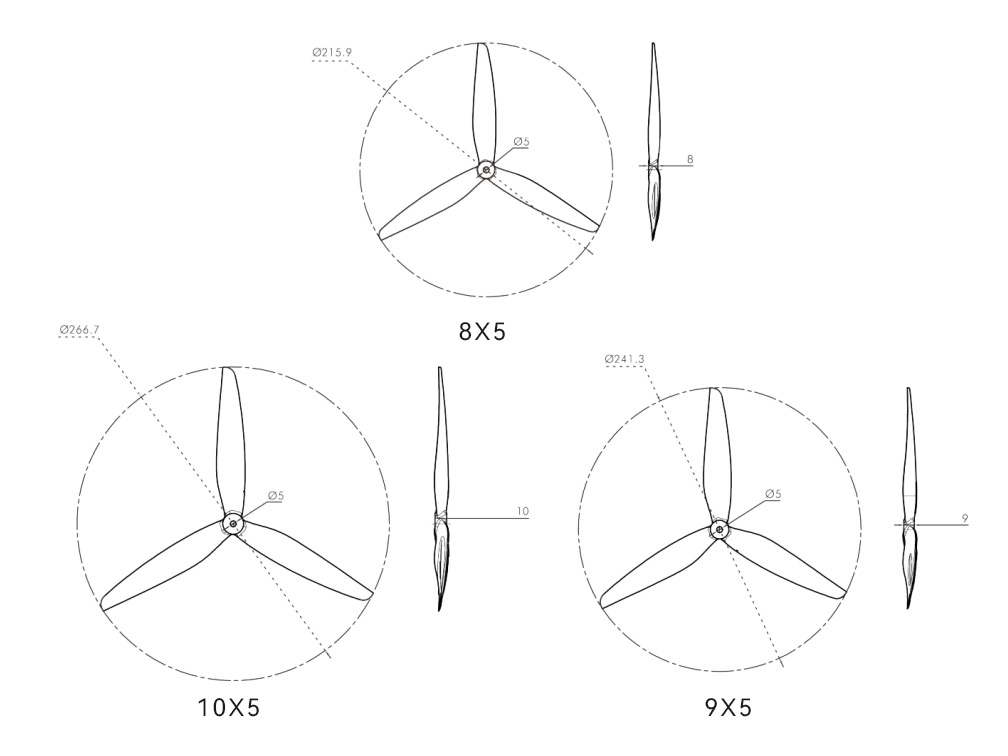

Technical Drawing

Specification

Model	9X5	Hub Diameter	12.2mm

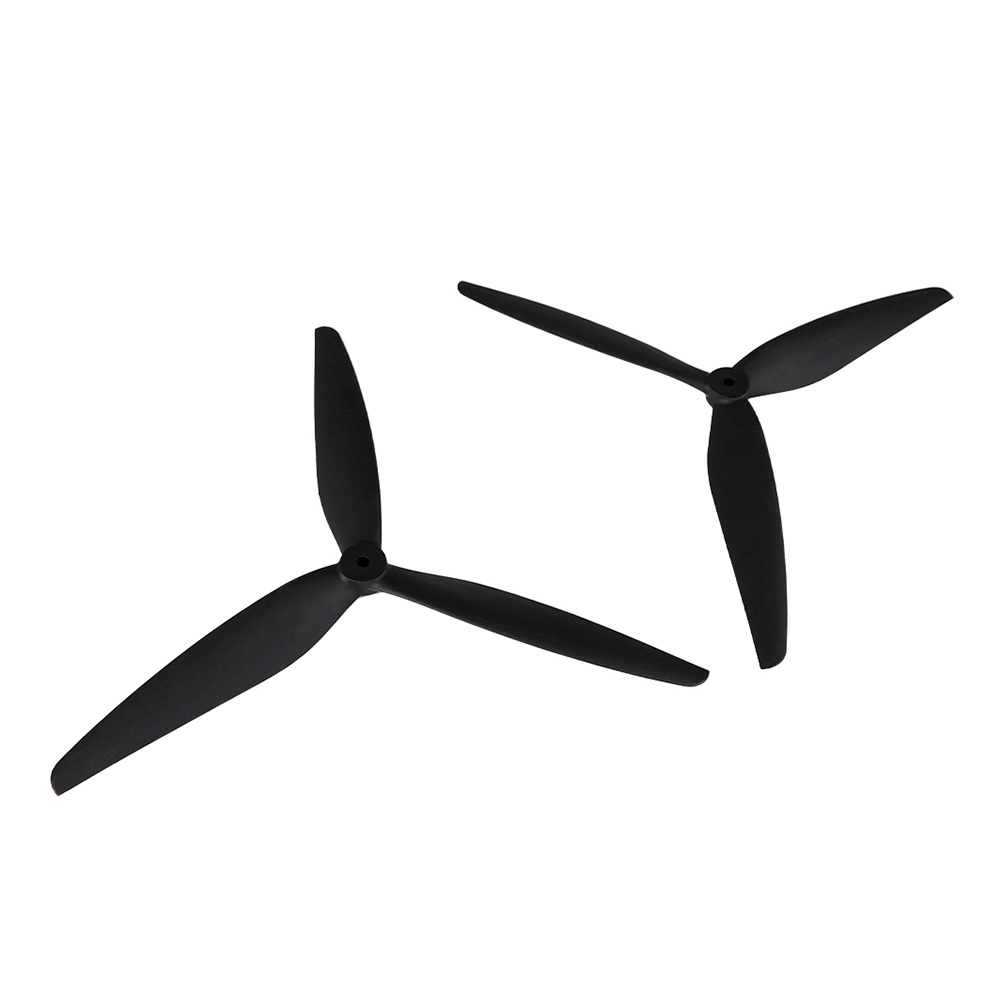

Includes	1xCCW Prop 1xCW prop	Center thickness	9mm
Blades	3	Hub Inner Diameter	5mm
Material	Glass fiber nylon	Maximum blade width	25.5mm
Pitch	5in	Weight	21.3g
Prop Disc Diameter	242mm

Test Data

Motor	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (G/W)	Temperature (℃)
Motor	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (G/W)	Temperature (℃)
2812 925KV	9X5X3	10%	24.03	0.34	8.1	2142	58.21	0.01	7.25	/
		20%	24.01	1.33	31.8	4003	250.63	0.05	7.87
		30%	23.99	3.13	75.1	5663	531.64	0.09	7.08
		40%	23.95	6.19	148.2	7188	887.61	0.15	5.99
		50%	23.88	10.81	258	8646	1275.35	0.21	4.94
		60%	23.78	17.54	417	9972	1780.68	0.29	4.27
		70%	23.65	24.5	579.5	11121	2190.36	0.37	3.78
		80%	23.5	35.08	824.2	12184	2759.08	0.45	3.35
		90%	23.35	45.53	1063	13078	3118.89	0.52	2.93
		100%	23.18	57	1321.4	13910	3547.62	0.59	2.69
2812 925KV	9X5X3	10%	24.03	0.33	7.9	2123	64.05	0.01	8.18	/
		20%	24.02	1.33	31.8	3998	269.66	0.05	8.48
		30%	23.99	3.2	76.8	5608	555.58	0.09	7.24
		40%	23.95	6.3	150.9	7132	912.35	0.15	6.05
		50%	23.88	10.93	261.1	8589	1320.43	0.22	5.06
		60%	23.78	17.38	413.5	9944	1791.71	0.3	4.33
		70%	23.65	24.99	590.8	11089	2253.36	0.37	3.82
		80%	23.5	34.86	819.3	12130	2725.58	0.45	3.33
		90%	23.35	45.18	1055.2	13062	3140.78	0.52	2.98
		100%	23.19	56.61	1312.5	13789	3541.25	0.59	2.7
3115 400KV	9X5X3	10%	48.03	0.21	10	2134	34.94	0.02	3.49	/
		20%	48.02	0.76	36.4	4101	237.8	0.05	6.53
		30%	48.01	1.46	70	5472	478.43	0.08	6.83
		40%	47.99	3.11	149.2	7101	855.57	0.14	5.74
		50%	47.95	5.51	264.4	8640	1300.32	0.22	4.92
		60%	47.91	8.61	412.3	10049	1783.81	0.29	4.33
		70%	47.85	12.15	581.5	11478	2357.55	0.39	4.05
		80%	47.77	17.44	833.4	12860	2986.12	0.5	3.58
		90%	47.66	23.77	1133	14133	3638.31	0.61	3.21
		100%	47.54	31.42	1493.4	15291	4299.18	0.72	2.88
3115 640KV	9X5X3	10%	32.08	0.33	10.6	2030	32.3	0.01	3.05	/
		20%	32.07	1.21	38.8	4108	242.27	0.04	6.25
		30%	32.04	2.64	84.6	5642	518.38	0.09	6.13
		40%	32.01	5.01	160.4	7183	881.96	0.14	5.5
		50%	31.95	8.72	278.5	8732	1333.48	0.22	4.79
		60%	31.88	13.91	443.4	10151	1821.49	0.3	4.11
		70%	31.8	19.43	617.9	11554	2389.36	0.39	3.87
		80%	31.67	27.77	879.4	12900	3017.99	0.5	3.43
		90%	31.53	37.44	1180.5	14120	3637.14	0.6	3.08
		100%	31.36	49.03	1537.4	15211	4279.5	0.71	2.78
3115 900KV	9X5X3	10%	24.05	0.49	11.8	2024	29.43	0.02	2.5	/
		20%	24.03	1.8	43.3	4233	256.16	0.05	5.92
		30%	24	3.88	93.1	5790	547.49	0.1	5.88
		40%	23.94	7.4	177.1	7367	932.59	0.16	5.27
		50%	23.84	12.55	299.3	8930	1403.56	0.23	4.69
		60%	23.72	20.69	490.7	10368	1901.73	0.32	3.88
		70%	23.6	28.85	680.8	11733	2479.64	0.41	3.64
		80%	23.43	40.61	951.3	13036	3083.88	0.51	3.24
		90%	23.22	54.17	1257.8	14176	3662.89	0.61	2.91
		100%	22.98	70.01	1608.9	15190	4246.05	0.71	2.64
3115 1050KV	9X5X3	10%	24.06	0.63	15.1	2212	38.4	0.02	2.55	/
		20%	24.04	2.32	55.6	4529	304.12	0.06	5.47
		30%	24	5.02	120.4	6230	644.54	0.11	5.35
		40%	23.91	9.78	233.9	7962	1098.91	0.18	4.7
		50%	23.78	17.28	411.1	9572	1623.82	0.27	3.95
		60%	23.65	26.61	629.2	11103	2216.81	0.36	3.52
		70%	23.48	37.46	879.6	12453	2812.5	0.46	3.2
		80%	23.28	51.33	1194.9	13723	3454.65	0.57	2.89
		90%	23.03	67.94	1564.4	14793	4024.29	0.67	2.57
		100%	22.73	83.5	1898	15628	4536.52	0.76	2.39

9*5
