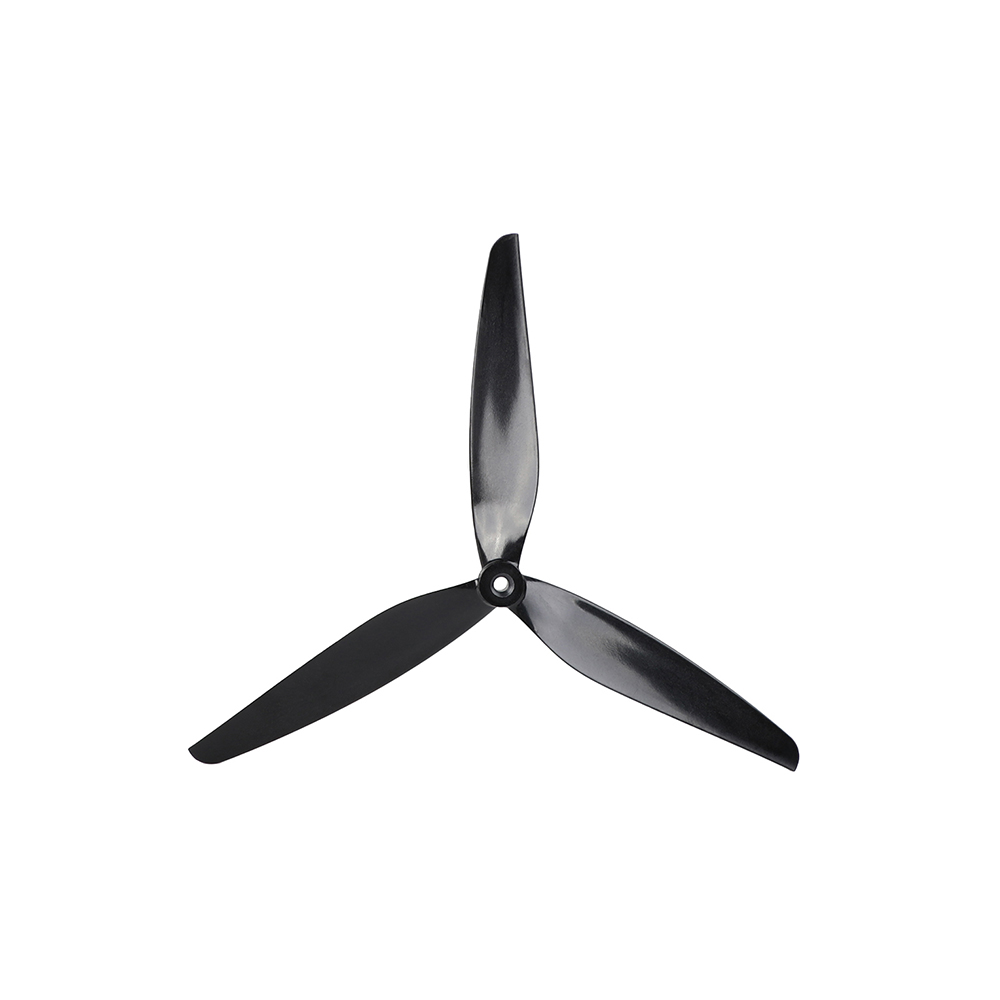

10x5 10" Propeller | Pro Design for Reliable FPV Flight

Technical Drawing

Specification

Model	10X5	Hub Diameter	13.6mm
Includes	1xCCW Prop 1xCW prop	Center thickness	10mm
Blades	3	Hub Inner Diameter	5mm
Material	Glass fiber nylon	Maximum blade width	26.5mm
Pitch	5in	Weight	26.5g
Prop Disc Diameter	267mm

Test Data

Motor	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (G/W)	Temperature (℃)
Motor	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Thrust (g)	Torque (N*m)	Efficiency (G/W)	Temperature (℃)
3115 400KV	10X5X3	10%	48.03	0.22	10.4	1880	42.11	0.02	4.08	/
		20%	48.02	0.73	34.9	3644	271.75	0.06	7.78
		30%	48.01	1.77	85	5187	619	0.11	7.28
		40%	47.98	3.72	178.4	6758	1098.68	0.19	6.16
		50%	47.93	6.7	321	8220	1645.66	0.29	5.13
		60%	47.87	10.26	491	9407	2188.59	0.38	0
		70%	47.8	15.99	764.3	10821	2930.74	0.51	3.84
		80%	47.67	23.3	1110.6	11851	3555.23	0.62	3.2
		90%	47.54	31.01	1474.1	13011	4284.95	0.76	2.91
		100%	47.38	41.84	1982.4	13713	4817.3	0.85	2.43
3115 640KV	10X5X3	10%	32.08	0.33	10.7	1738	37.12	0.02	3.49	/
		20%	32.07	1.25	40.2	3686	284.83	0.06	7.09
		30%	32.04	3.13	100.3	5243	655.43	0.11	6.54
		40%	32	5.94	190.1	6784	1127.27	0.19	5.93
		50%	31.93	10.67	340.6	8262	1704.67	0.29	5.01
		60%	31.83	16.5	525.2	9432	2217.85	0.38	4.22
		70%	31.71	25.2	799.2	10829	2952.1	0.51	3.69
		80%	31.55	34.25	1080.5	11770	3559.16	0.61	3.29
		90%	31.38	47.53	1491.4	12890	4265.38	0.74	2.86
		100%	31.17	61.83	1927	13632	4797.4	0.84	2.49
3115 900KV	10X5X3	10%	24.04	0.5	12.1	1649	27.63	0.03	2.3	/
		20%	24.03	1.88	45.1	3767	305.11	0.06	6.76
		30%	23.99	4.56	109.4	5379	691.35	0.12	6.33
		40%	23.89	9.39	224.4	6958	1214.69	0.21	5.42
		50%	23.79	15.86	377.3	8391	1781.89	0.31	4.72
		60%	23.61	23.86	14.2	9516	2306.55	0.4	4.09
		70%	23.48	36.67	16.4	10886	3042.53	0.52	3.53
		80%	23.24	50.48	18.6	11874	3645.72	0.62	3.11
		90%	23.03	66.87	1539.9	12795	4244.01	0.74	2.76
		100%	22.74	83.3	1894.2	13479	4735.29	0.82	2.5
3120 500KV	10X5X3	10%	48.08	0.41	19.5	2388	82.19	0.04	4.23	/
		20%	48.06	1.44	69.2	4553	458.63	0.09	6.64
		30%	48.04	3.26	156.4	6208	926.91	0.17	5.93
		40%	47.99	6.12	293.7	7908	1567.45	0.27	5.34
		50%	47.92	11.25	539.1	9651	2376.45	0.41	4.41
		60%	47.82	18.19	870	11209	3228.6	0.56	3.71
		70%	47.68	26.62	1269.4	12648	4123.97	0.72	3.25
		80%	47.5	37.67	1789.5	13976	5094.84	0.9	2.85
		90%	47.3	51.56	2438.7	15234	6111.71	1.09	2.51
		100%	47.04	68.91	3241.6	16069	6837.44	1.23	2.11
3120 700KV	10X5X3	10%	32.08	0.51	16.4	2131	57.7	0.03	3.52	/
		20%	32.06	1.89	60.7	4226	388.29	0.08	6.4
		30%	32.03	4.12	132.1	5789	802.53	0.14	6.08
		40%	31.97	8.07	257.9	7394	1359.12	0.23	5.27
		50%	31.89	13.8	440.1	8969	2045.23	0.35	4.65
		60%	31.77	22.37	710.5	10355	2759.42	0.47	3.88
		70%	31.63	31.64	1000.6	11771	3564.1	0.61	3.56
		80%	31.44	44.84	1409.7	13059	4424.01	0.77	3.14
		90%	31.2	60.97	1902.2	14158	5196.75	0.92	2.73
		100%	30.89	79.41	2453.1	15198	6028.15	1.08	2.46

10*5
